What's Cube?

Cube visualizes packets arrving at NICTER's darknet in a three-dimensional space (cube). The vertical axis of the cube represents the IP addresses and the horizontal axis of the cube represents port numbers. The origin of the visualized packets (left side plane) reprensets source IP address and source port and the end of the packets (arriving at the right hand plane) represents destination IP address and destination port.

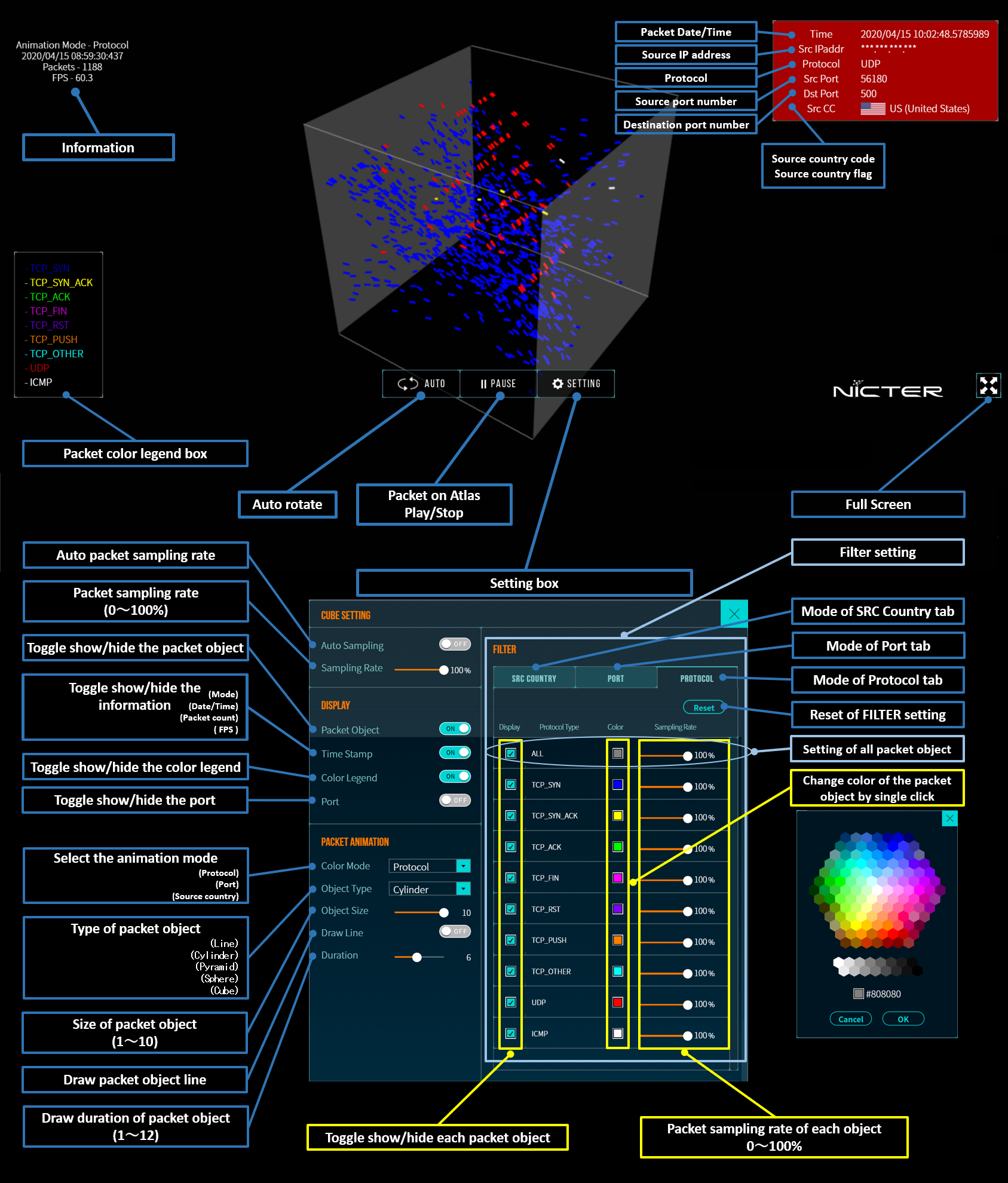

Cube User's Guide
